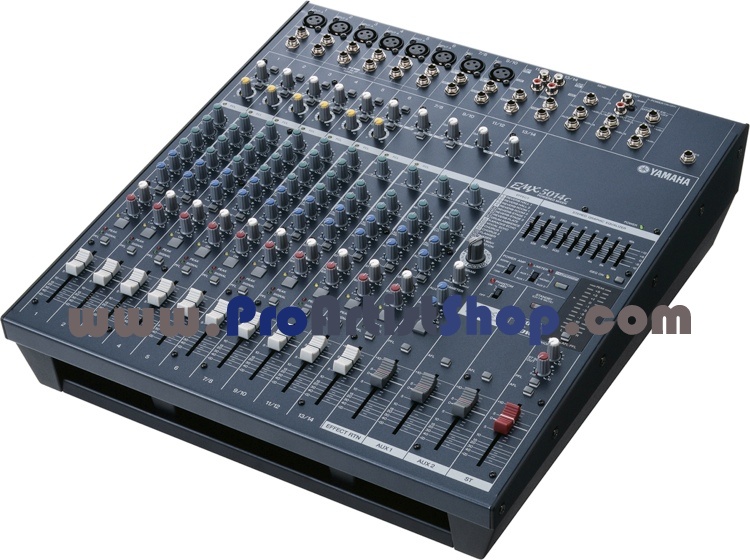

Yamaha EMX5014C Stereo Mixer
RRP:
Your Price:
$370.00
(You save $222.00)
Brand:
Condition:
New
Shipping:
Free Shipping
Product Description
Yamaha EMX5014C Stereo Mixer
Features:
- Exclusive single-knob compressors on each input control unruly vocals or tighten up a bass guitar
- Feedback channel locator LEDs on each input pinpoint problems for easy correction
- 80Hz highpass filters for eliminating low-frequency noise and rumble
- Channel ON switches let you switch individual channels into or out of the mix
- PFL (Pre-Fader Listen) switches allow isolated monitoring of individual channels
- All input channels feature signal and peak indicators for visual signal monitoring
- Linear Aux 1, Aux 2, and Effect retu faders with AFL (After-Fader Listen) monitor switches
- Stereo master fader with both PFL and AFL monitor switches
- Limiter indicators tell you when the inteal limiter circuitry
- has been activated due to power amplifier overload
- Power amp mode selector allows 2-channel power amp to be quickly configured for Main + Main, Mono + Aux 1, or Aux 1 + Aux 2 operation
- Power amplifier output selector allows selection of 500, 200, or 75-watt output per channel
Specifications
| Type | Powered |
|---|---|
| Channels | 14 |
| Power | 350W @ 8 ohms, 500 W at 4 ohms |
| Inputs - Mic Preamps | 6 x XLR (CH 1-6), 2 x XLR (CH 7-10 Stereo) |
| Inputs - Line | 6 x 1/4" (CH 1-6), 4 x 1/4" (CH 7-10 Stereo), 4 x 1/4", RCA (CH 11-14 Stereo) |
| Inputs - Other | No Other Inputs |
| Outputs - Main | 2 x Speakon, 2 x 1/4", 2 x 1/4" |
| Outputs - Direct | No Direct Outputs |
| Outputs -Other | 2 x RCA (Tape), 2 x 1/4" (ST Sub Out) |
| Headphones | 1 x 1/4" |
| Send/Retu I/O | 2 x 1/4" (Aux), 1 x 1/4" (Effects) |
| Phantom Power | 8 Channels |
| EQ Bands | Channels: 3-band Sweepable Mid (CH 1-6), 3-band (7-14 Stereo); Main: 9-band Graphic |
| Aux Sends | 1 x Pre, 1 x Pre/Post |
| Busses/Groups | No Bus or Group |
| Faders | 14 x 60mm |
| Channel Inserts | Yes (CH 1-6) |
| Effects | Yes, Global and Compression on Channels 1-6 |
| Computer Connectivity | No Computer Connectivity |
| Rackmountable | Yes |
| Height | 6.13" |
| Depth | 19.5" |
| Width | 17.5" |
| Weight | 23 lbs. |
Warranty Information
1 Years Warranty
